Connector Adapter

N-type Right Angle Adapter

The N-type right-angle adapter enables efficient and space-saving installations in various RF systems and applications.

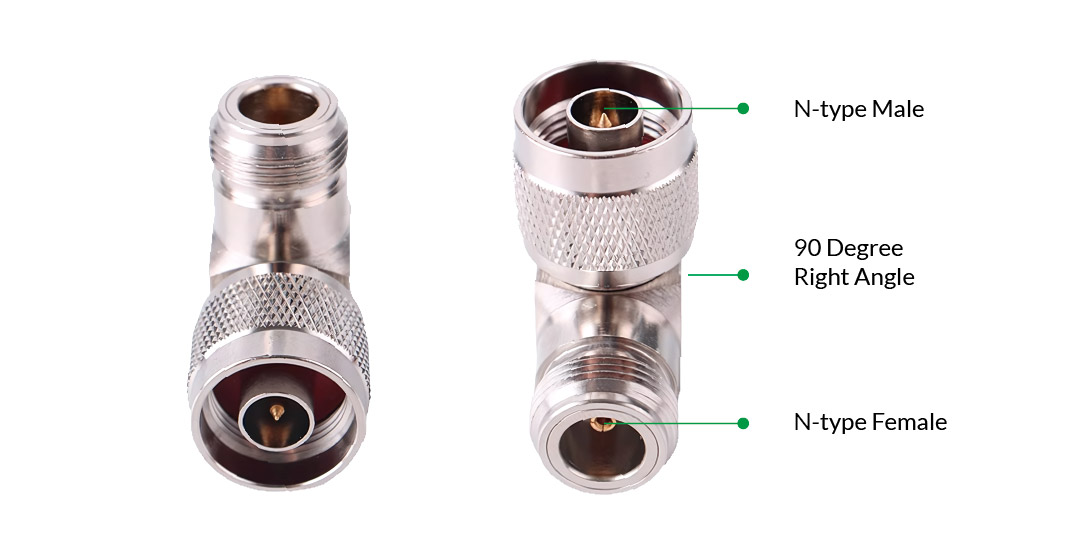

The right-angle design has a 90-degree bend to make cables and antennas make right-angle turns. The N-male to N-female gender conversion allows for connections to original cables and antennas. It has a characteristic 50 ohms impedance and operates at frequencies from DC up to 11GHz to adapt to WiFi routers and cellular modems.

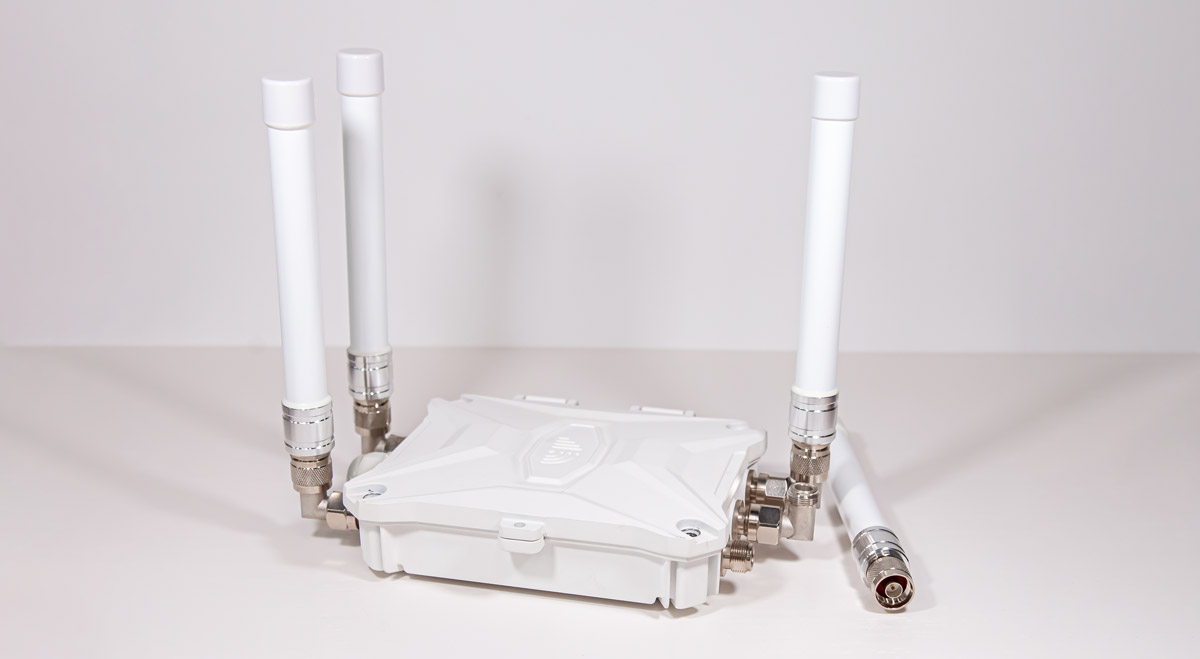

For example, when using an outdoor router on the caravan roof, we need to reduce the router height and keep antennas in the vertical direction. Using the right-angle connector adapter allows the router to be installed horizontally and keeps the antennas vertical. The total height becomes 232mm only.
